Chevy LS327 - 5.3 Liter

The original 327 was a legend that is still impressing new drivers. That 327 found its way into Camaros, Corvettes and a few other high performance GM cars of the day. That engine was known for its ability to run at higher RPM's which works well at most race tracks. GM Performance delivers a new 327 in the form of a 5.3 liter - 327 horsepower small block LS. That is one horse per cubic inch. GM LS327's freature components to make it a high revver, just like the 60's 327. A hotter cam, Grafal-coated high-silicon pistons and more add up to an LS engine that is fun to drive.

*Applications have not been validated. They are merely suggestions of how you might enjoy your GM Performance Parts crate engine. Some applications may affect engine warranty. See specific warranty information. Some applications may not be emission legal; check state and local ordinances.



LS327 - 5.3 Liter TECH SPECS:
Part Number: 19165628
Engine type: LS Series small-block V-8
Displacement (cu in): 327 (5.3L)
Bore x stroke (in): 3.78 x 3.62 (96 x 92mm)
Block (P/N 12568734): Cast-iron with 6-bolt, cross-bolted iron main caps
Crankshaft (P/N 12553480): Nodular iron
Connecting rods (P/N 12568734): Powdered metal steel
Pistons (P/N 12571545): Hypereutectic aluminum
Camshaft type (P/N 12561721): Hydraulic roller
Camshaft lift (in): .467 intake / .479 exhaust
Camshaft duration (@.050 in):196 degree intake / 201 degree exhaust
Cylinder heads (P/N 12559865): Aluminum; cathedral port
Valve size (in): 1.89 intake / 1.55 exhaust
Compression ratio: 9.5:1
Rocker arms (P/N 10214664): Investment cast, roller trunnion
Rocker arm ratio: 1.7:1
Recommended fuel: 87 octane
Maximum rpm: 6000
Reluctor wheel: 24X
Balanced: Internal

Cummins Engine Swap Kits

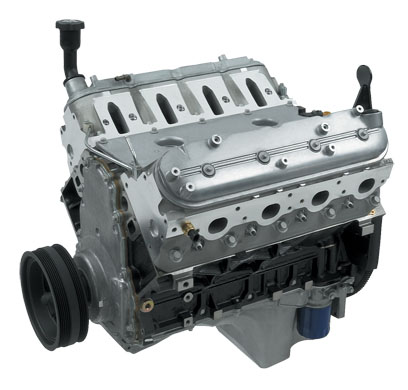

LS327 5.3 liter engine image

Part #:19165628

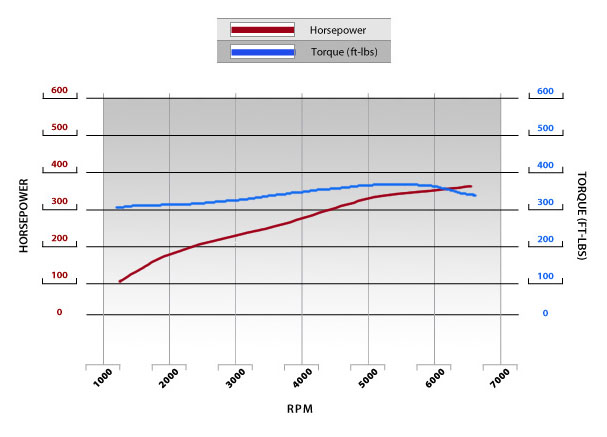

LS327 dyno image
